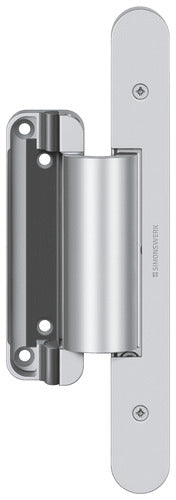

TECTUS concealed hinges are designed and built to last, while maintaining a minimalist appearance. With a range of load capacities and sizes, the TECTUS brand of hinges have a wide area of application from residential to heavy-duty doors, even with variations with intumescent kits (TECTUS FR - special order) or integrated energy transfer (TECTUS Energy - special order).

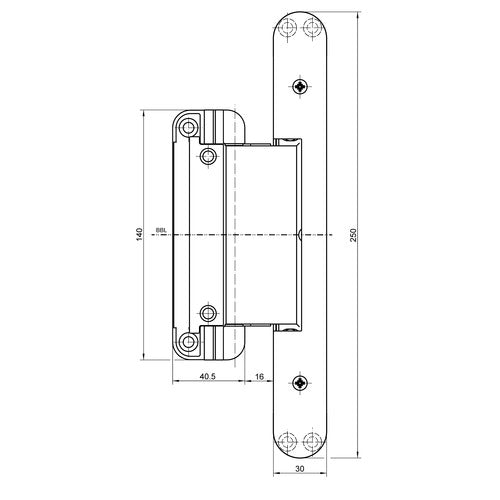

TE680 SPECIFICATIONS:
- Load capacity: 160KG
- Length (door part): 140mm
- Length (frame part): 250mm
- Width (door part): 40.5mm
- Width (frame part): 30mm
- Opening angle: 180°
-
Suitable for timber doors
- Suitable for blind and block frames
Note: Load capacity mentioned refers to the use of 2 hinges per door leaf. With an opening position of 180°, the door may have to be fixed additionally.
