TECTUS concealed hinges are designed and built to last, while maintaining a minimalist appearance. With a range of load capacities and sizes, the TECTUS brand of hinges have a wide area of application from residential to heavy-duty doors, even with variations with intumescent kits (TECTUS FR - special order) or integrated energy transfer (TECTUS Energy - special order).

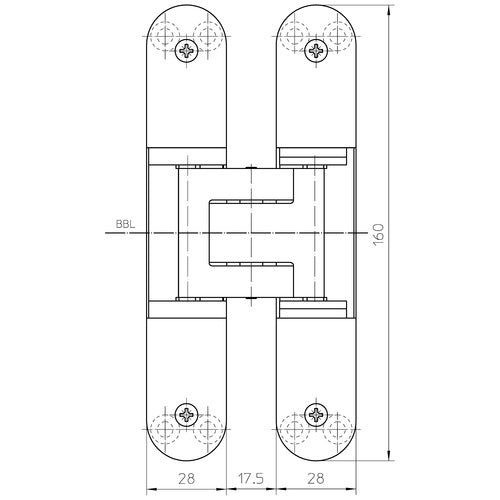

TE340 SPECIFICATIONS:
- Load capacity: 80KG
- Length: 160mm
- Width (door part): 28mm
- Width (frame part): 28mm
- Opening angle: 180°
-
Suitable for timber and metal doors
- Suitable for aluminium, blind, block, casing and steel frames
Note: Load capacity mentioned refers to the use of 2 hinges per door leaf. With an opening position of 180°, the door may have to be fixed additionally.
